Riester RCS-100 Camera System

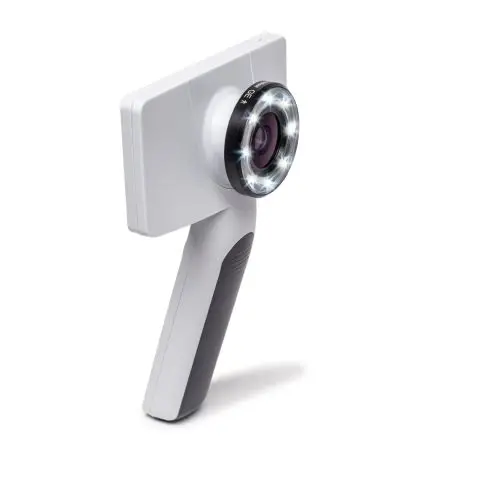

RCS-100 with General Exam Lens attached.

A lens for every need...

RCS-100 is a multi-functional, portable and versatile medical camera system that can be used with a choice of lenses and adapters to assess a patient's eyes, ears, nose, throat, skin and more.

It features adjustable brightness settings, along with manual and autofocus modes, allowing the clinician to capture top quality images and video.

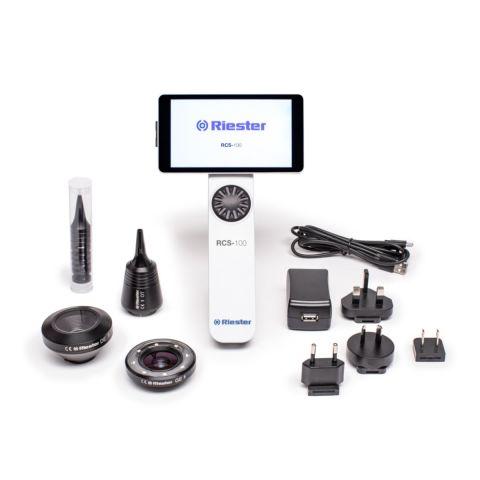

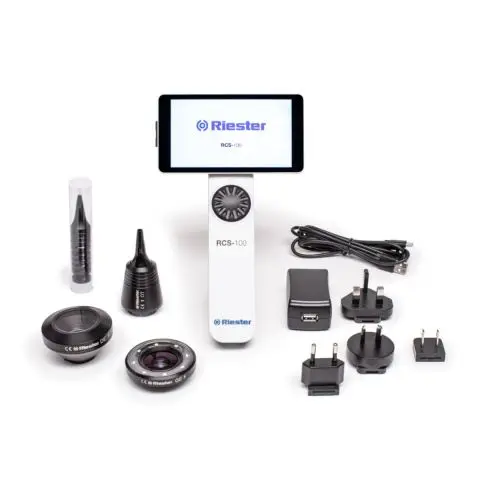

The standard RCS-100 kit comes with the video otoscope, dematoscope, and general exam lens, however we can also supply it with only the lenses you need for your application. Endoscope adapters (both 4° and 9°) are available that allow standard C-mount style endoscopes for a variety of endoscopy applications.

The RCS-100 can be used either for live video calls, or for capturing images and video that can be uploaded to an EHR or shared with a physician for a consultation.

The RCS-100 has >10GB of internal storage for image and video capture, and includes annotation features so that patients information is annotated on each image, avoiding mix-ups when they are subsequently uploaded to an EHR after a visit.

Purchase Here

Product Details

German precision engineering, with cutting edge medical technology, delivers a full featured medical camera system to improve monitoring, diagnoses and your ability to share imaging. The RCS-100 is a video otoscope, a digital dermatoscope, and general purpose examination camera in one.

Lens Options

  • General Lens

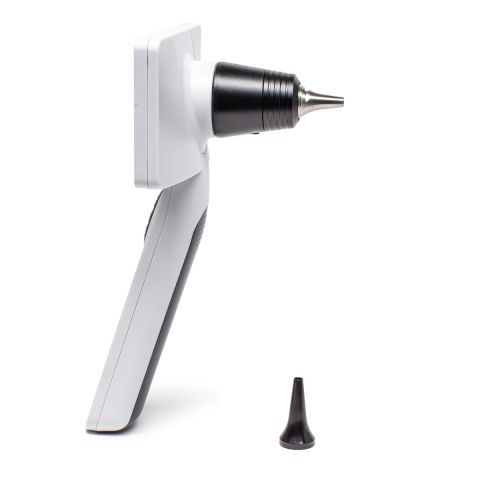

  • Otoscope Lens

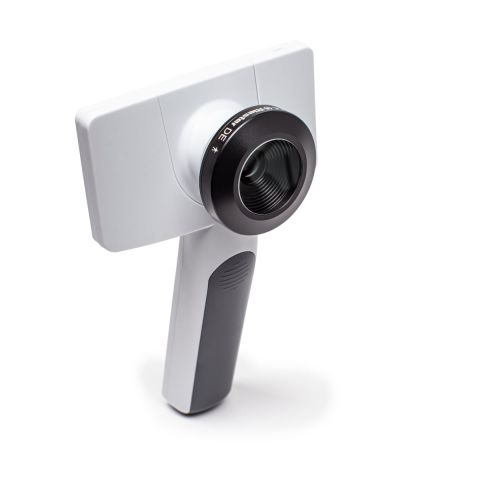

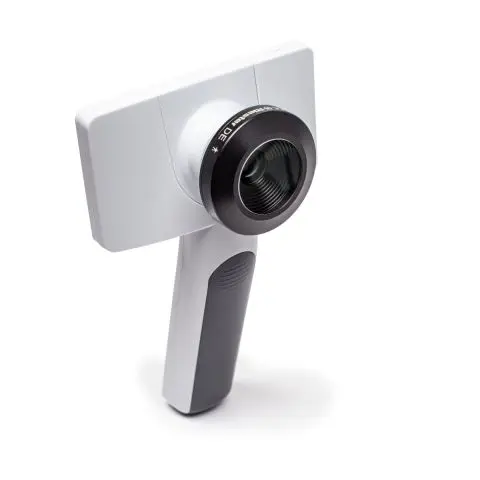

  • Dermatoscope Lens

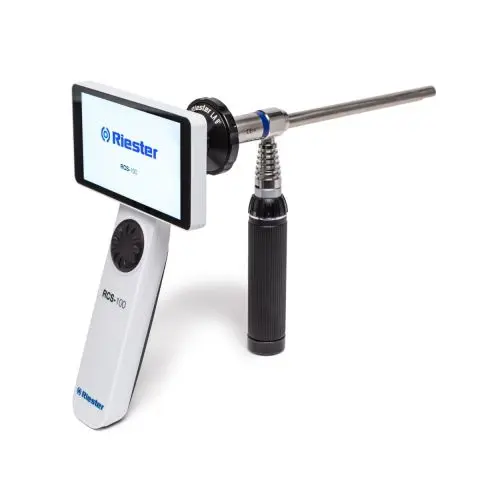

  • 4° Endoscope Adapter
  • 9° Endoscope Adapter


Visible white LED delivers accurate color

Large 5” touchscreen with intuitive interface for easy image capture and management

Ergonomic, one hand design with easy to use rotary wheel

Power Supply: LI-Ion battery for untethered operation

Automatic (otoscope/general lens) & manual (all lenses) focus settings

Simple lens connections makes changing fast and easy via bayonet connector

Multi functional diagnosis designed for ENT, dermatology, endoscopy and general practice

RCS-100 user interface available in different languages: english, german, french, spanish, italian, russian, chinese, arabic)

Patient information automatically added to saved images via annotation features


5“ full HD color TFT-LCD display 1,280 x 720 pixel including scratch proof cover LCD screen

8 MP CMOS delivers high resolution images

Resolution: Full HD true 3264 x 2448 Pixel

Photo Format: JPEG

Video Format: MP4(H.264)

225 mm x 135 mm x 45 mm
(8.86 in x 5.31 in x 1.77 in)

Weight: 292.0 g / (10.3 oz)

Battery life: 3.5 hours(in video mode)

Charging time: 3 hours

2 Years Manufacturers Warranty

16 GB internal memory

Made in Germany

Power adapter incl. country plugs (EU, US, UK, Australia)

Micro USB 2.0, cable length min. 180cm

Image Gallery

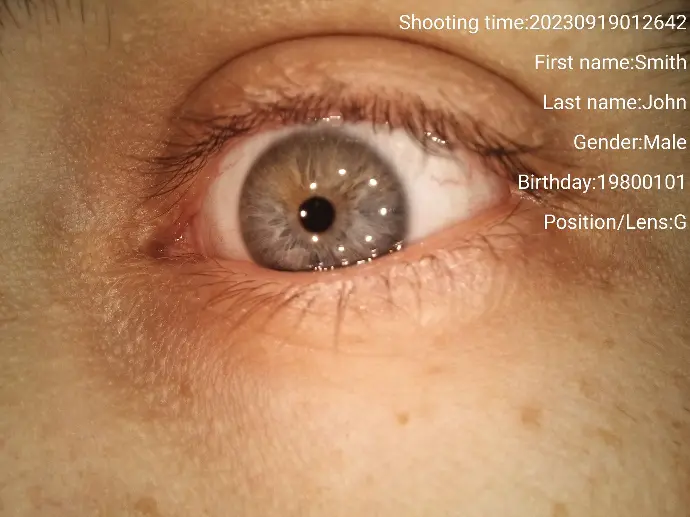

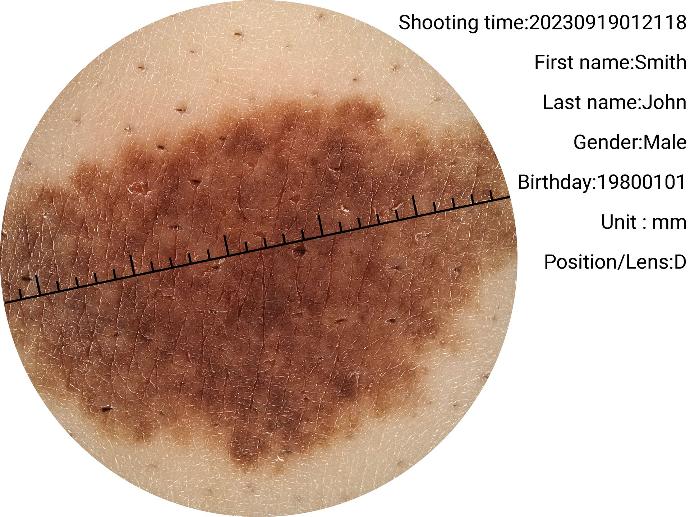

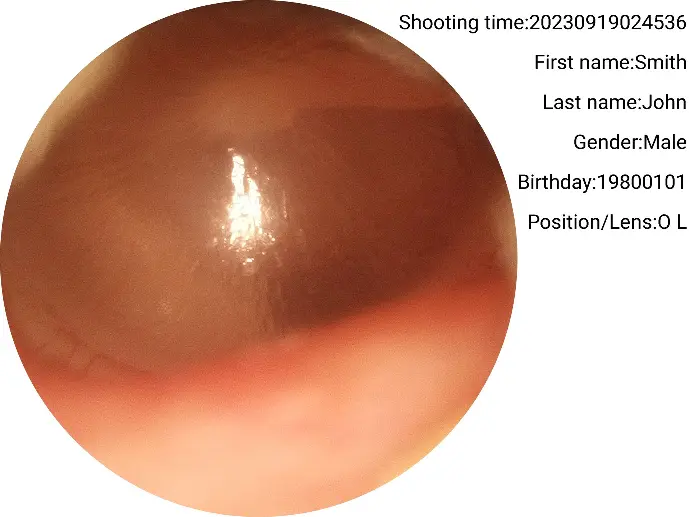

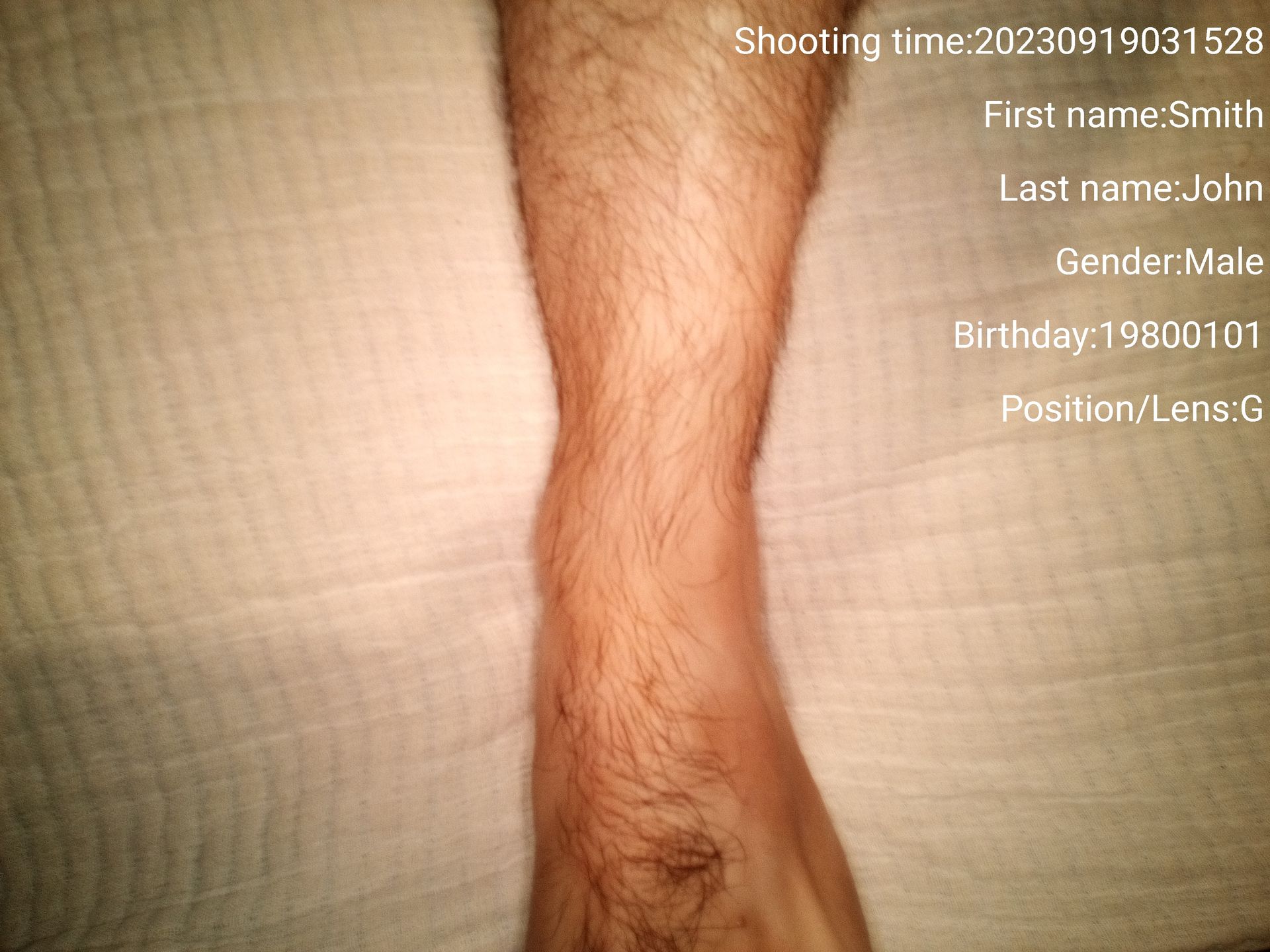

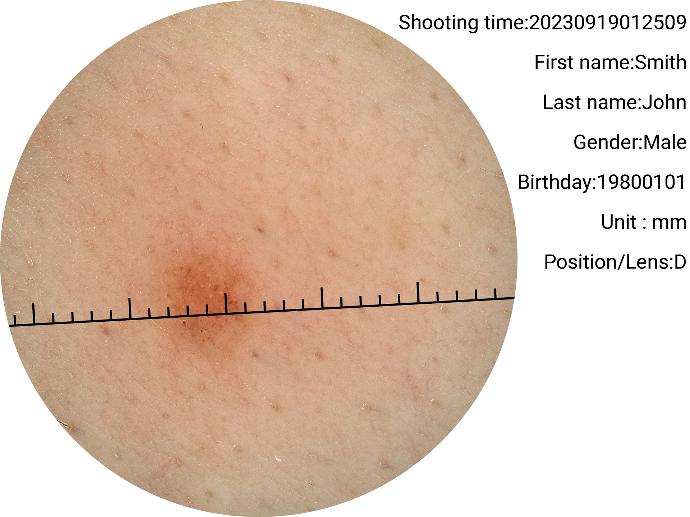

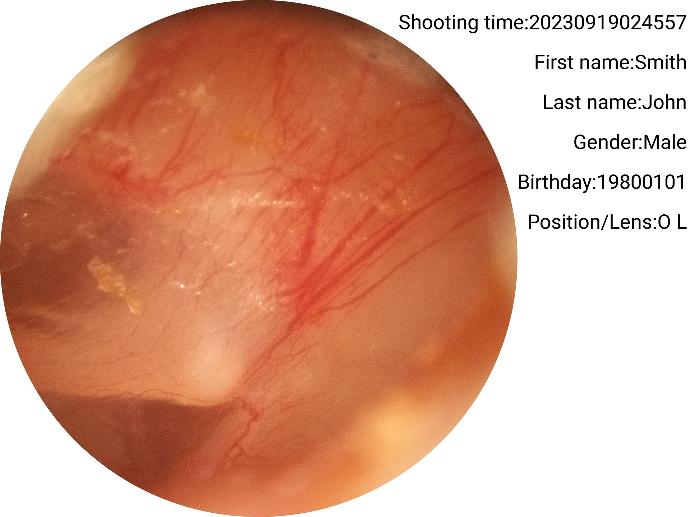

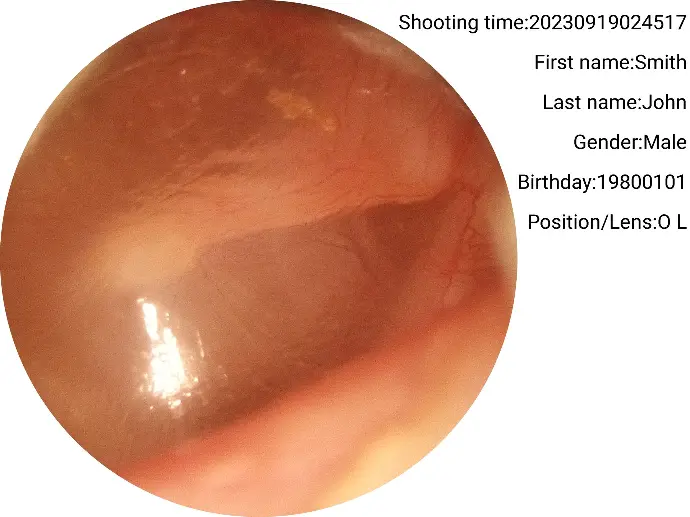

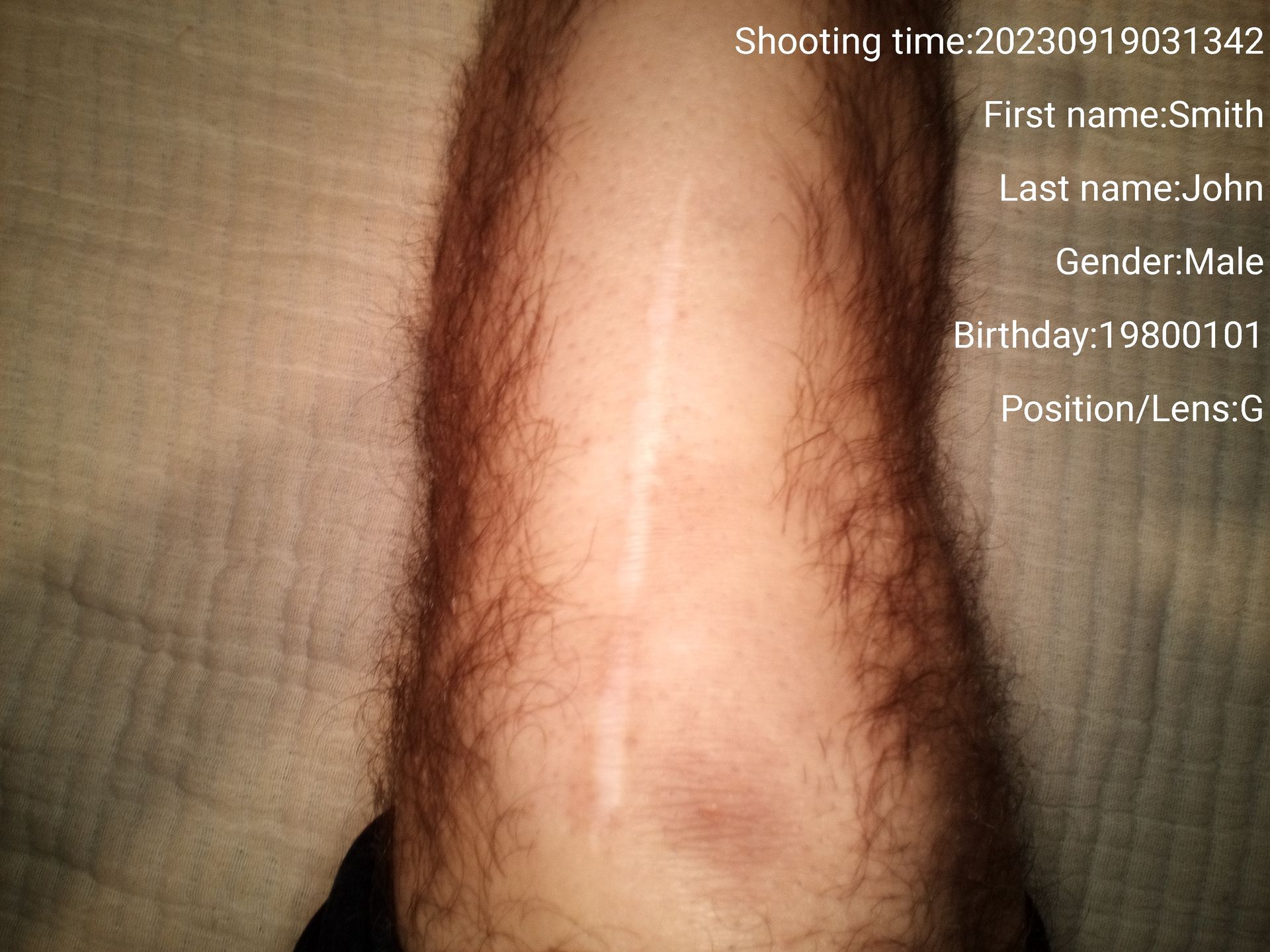

Actual product images - Annotations can be disabled
